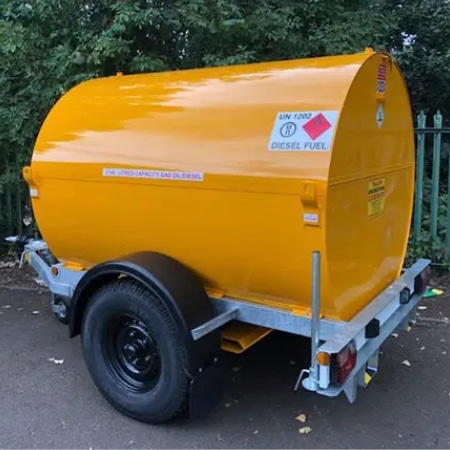

2140 Litre U.N. Approved Bunded Diesel Single Axle GB Highway Bowser
£7,839.00 Inc. VAT
Trailer Engineering’s 2140 litre bunded diesel highway fuel bowser is the flagship of Trailer Engineering’s fuel bowser range. Favoured by plant hire companies, the 2140 litre bunded diesel fuel bowser is a robust and highly capable fuel bowser, with extreme offroad and on road capabilities.
The single axle ensures a high ground clearance for off-roading without compromising the comfortable on-road towing, this bunded diesel fuel bowser is fully certified for the public highway. Manufactured from a fully welded steel galvanised chassis and heavy duty running gear.
The tank is manufactured from a polyethylene inner fuel tank to ensure a clean fuel storage solution and secured in a steel outer bund which has four lifting points, two fork truck points (for use when the tank is out of the chassis) and a lockable rear door to protect the pumping equipment and contents.
Our bunded diesel GB highway tow fuel bowser is fully U.N certified for 10 YEARS for the storage and transportation of fuel.
Technical Specifications
* Customer to offload forklift with extended forks will be required, to offload a curtain sided vehicle.
CHASSIS: Constructed from 100 x 50 RSC. fully welded with front standing plate and ‘A’ frame drawbar. Hot dip galvanised.
AXLE/SUSPENSION: Knott-Avonride 3000kg rubber torsion beam fitted with Knott-Avonride 300 x 60 auto reverse brakes operated via cables and rod.
WHEELS AND TYRES: 2 No 235/85 x 16 x 12 ply radials fitted to 5 stud 61/2” pcd rims.
COUPLING: 3000kg Knott-Avonride posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable. 40mm ring eye or 50mm ball.
ANCILLARY EQUIPMENT: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug, Optional Extra 7 pin adapter available on request.
OUTER BUND TANK: Cylindrical in section constructed from 3mm mild steel, with removable top section for tank access. Rear access door fitted with stainless steel hinge and fully lockable. Bund contains 110% of inner tank content. 4 lifting eyes, Fork sockets for use when tank is not fitted in a chassis.
INNER FUEL TANK: Constructed from translucent heavy duty Polyethylene 2” filler cap and chain. 2” vent valve, top mounted 1Ú2” BSP suction and return connections. Ball valve in base of tank to pump. P.R.V. in the top of the tank. The
Inner Tank is also approved for 10years.
PUMP: K2 semi rotary hand pump c/w in line ‘Y’ Strainer fitted with 15’ of 1” hose c/w trigger nozzle and stowed on bracket. All contained within lockable bund area.
Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.
FINISH: Tank- Primer and two top coats, single British Standard colour.
Galvanised chassis.
DIMENSIONS:(Approximate)
Width: 1.981m (78”) Unladen Weight: 968kg approx
Length: 3.600m (142”) Laden Weight: 2650kg approx – 2800kg max
Height: 2.015m ( 79”) Towing Height: (Level) 460mm
hAVE A QUESTION, OR STILL UNSURE ON THE BEST BOWSER FOR YOUR NEEDS?
Alternatively, give us a call on +44(0)1384 564765 or drop us an email to [email protected].
Delivery Information & Exclusions.
Please refer to our Delivery and Returns policy by clicking here: https://www.trailerengineering.co.uk/delivery-returns/
However, here's some important delivery information:
* UK Mainland Delivery, Delivery price above Excludes Northern Ireland, Northern Scotland & Isles, West Wales, coastal areas Etc Price On Application (POA).
*For none UK Deliveries POA.
*Offloading of heavy items such as bowsers & tanks should be made by a forklift with extended forks or similar heavy lifting equipment. If you will be offloading via an overhead crane and require delivery to be made on flat bed vehicle please advise prior to purchase as additional charges may apply, our standard delivery vehicles are normally curtain sided vehicles and don’t allow access for overhead cranes. If a forklift with extended forks is not available to offload, please advise prior to purchase as we can make alternative arrangements i.e. Via HIAB Delivery. However, these special deliveries will be POA.
*Delivery is a kerbside service only, and not a “drop at your door service”. Arrangements must be made by the customer to manoeuvre the tanks into position.
* It is the customers responsibility to ensure that there is safe and adequate access for large lorries.
*Trailer Engineering Will contact you prior to despatch to advise delivery date, if for any reason delivery is attempted and failed on the advised date, it is the customers responsibility to cover the initial transport costs and any additional charges to get the units back to ourselves and Re-delivered on another date. Therefore, it is vital that if delivery is expected on a specific date that someone is available with the correct offloading facilities and can sign for the goods at the delivery address as additional charges for failed deliveries can be significant.
*As offloading is the customers responsibility any damages to the units which is caused during the offloading process wouldn’t be covered under warranty and would be the customers responsibility.
*Tanks cannot be left without a customer’s signature.
